£99.99

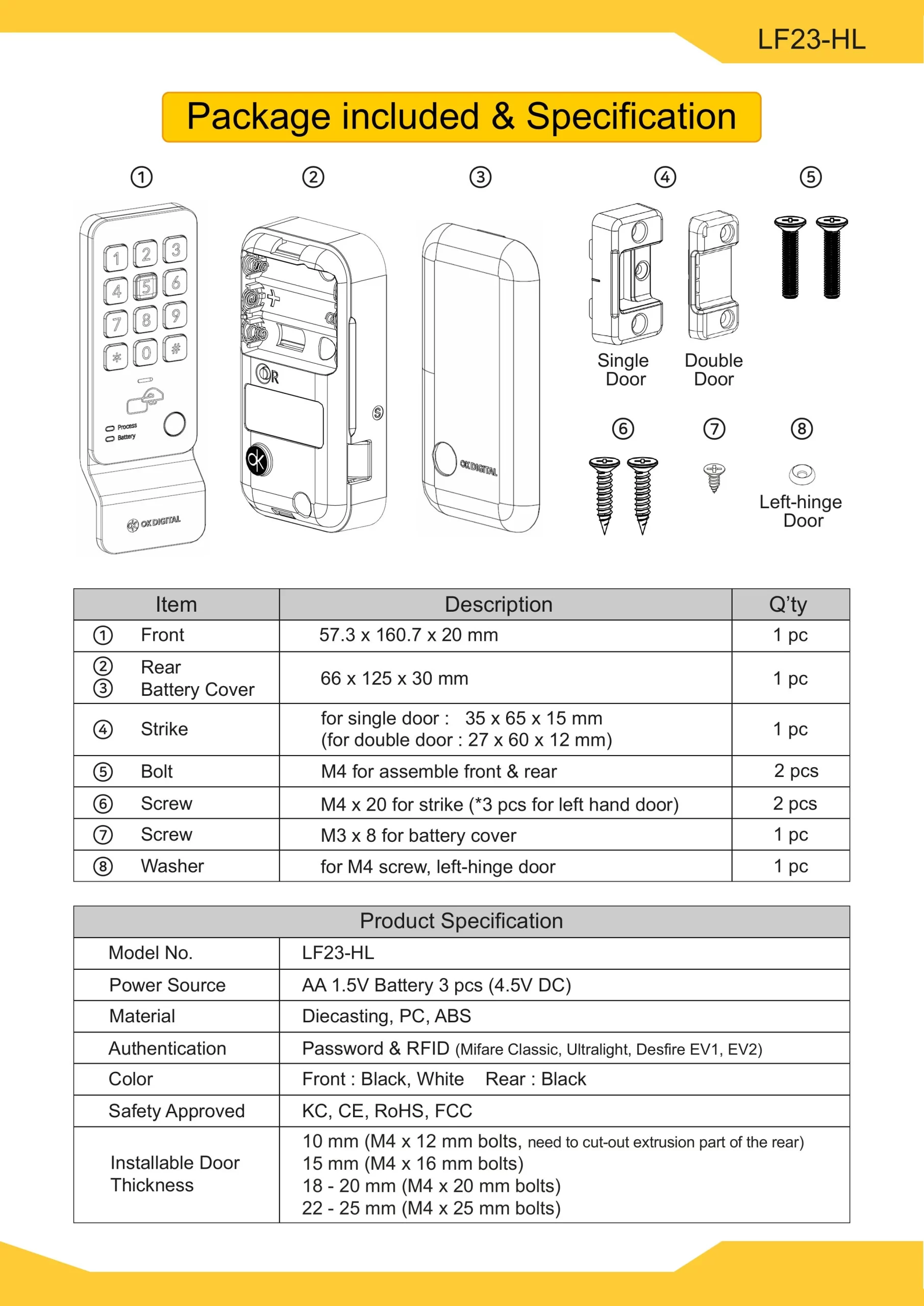

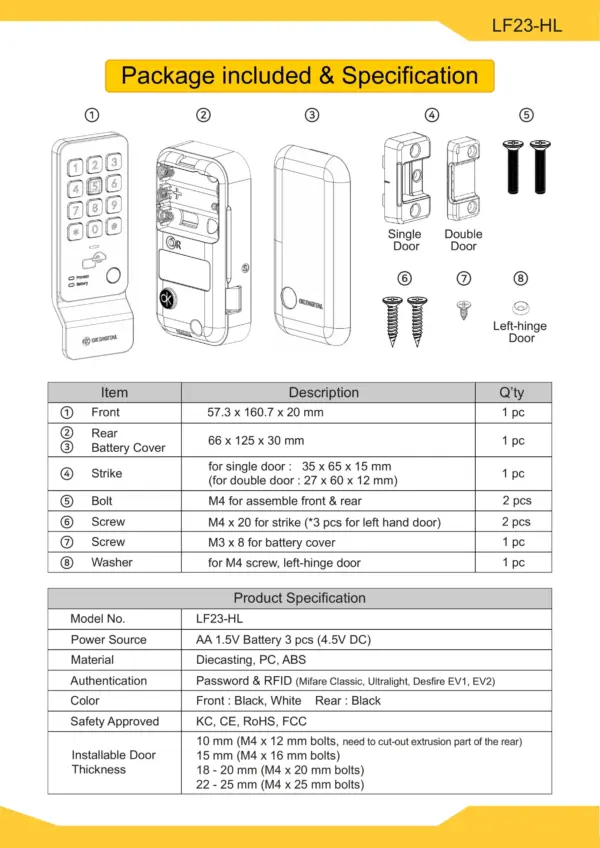

Specifications |
|
Model No. | LF23-HL |
Input Power | 4.5V DC, AA 1.5V Battery3 pcs (* use 18 months) |
Authentication | 4-12 Digit Password RFID, Imaginary, Public/Private |
Key Levels | 3 Levels (Owner, Master, User), Cleaner Option |
Color | Front: Black or White Rear: Black |
Certifications | KC, CE, RoHS, FCC |
Door Thickness | 15-25mm |
Front Size | 57.3x 160.7x 20mm |
Rear Size | 66x125x30mm |
Material | Die-casting, PC, ABS |
Free Shipping
orders over £75
Amazing customer service 24 x 7
1 to 2 days
Dispatch

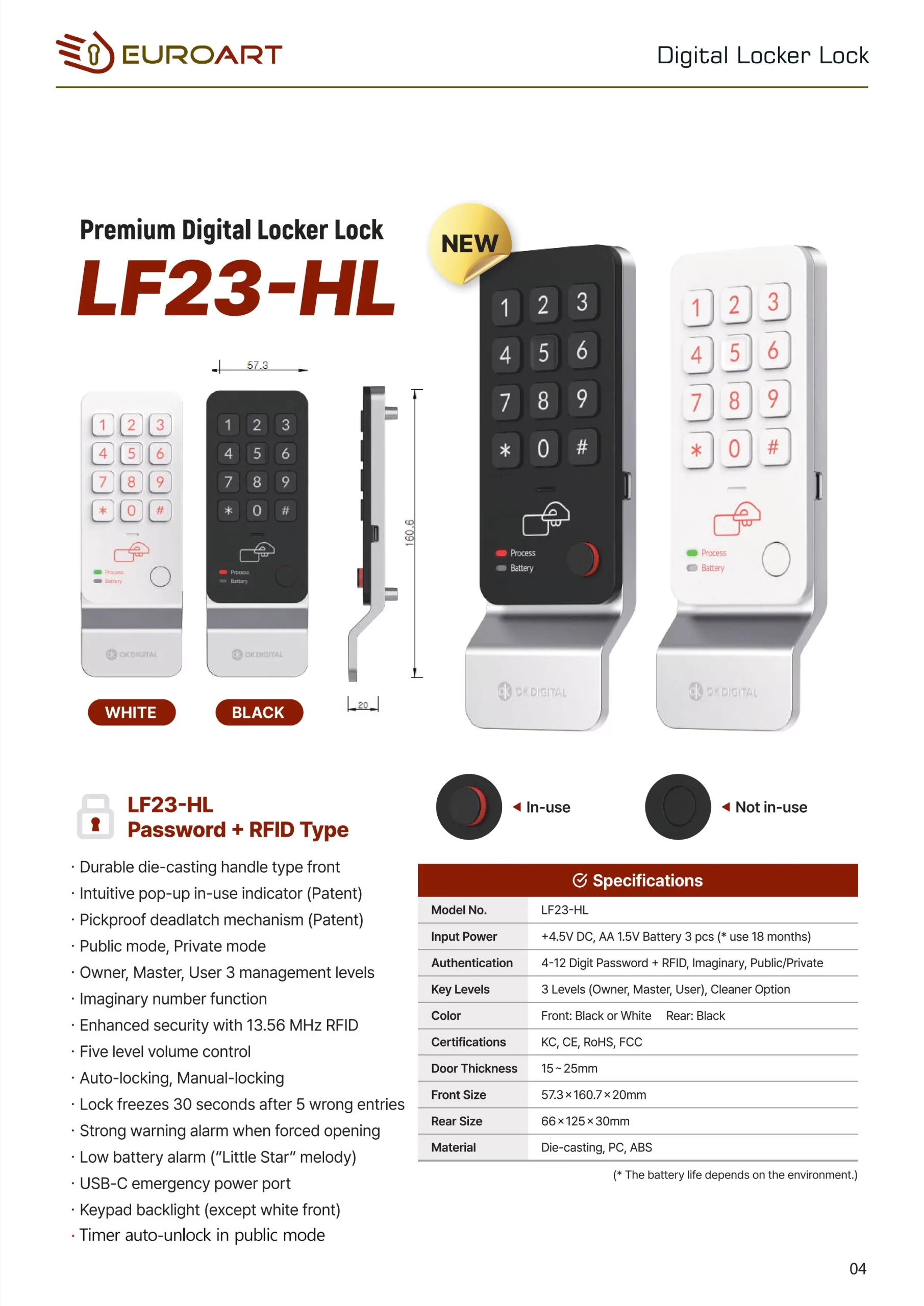

Description
Durable die-casting handle type front
Intuitive pop-up in-use indicator (Patent)
Pickproof deadlatch mechanism (Patent)
Public mode, Private mode
Owner, Master, User3 management levels
Imaginary number function
Enhanced security with 13.56 MHz RFID
Five level volume control
Auto-locking, Manual-locking
Lock freezes 30 seconds after5 wrong entries
Strong warning alarm when forced opening
Low battery alarm (“Little Star“ melody)
USB-C emergency power port
Keypad backlight (except white front)
Timer auto-unlock in public mode

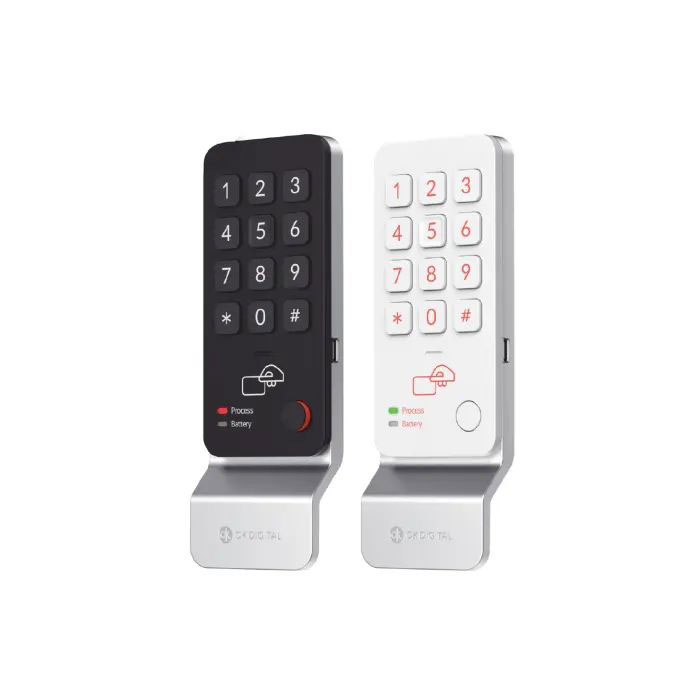

The EUROART EALF23-HL Smart Digital Lock delivers advanced locker access control in a compact, user-friendly design—perfect for cabinets, gym lockers, office pods, and educational facilities. Engineered with precision, this smart lock excels in both form and function.
Designed for doors 15–25 mm thick, the slim profile features a front module measuring approximately 39 × 144 × 20 mm and a rear module of 66 × 125 × 30 mm, crafted from robust die-cast materials with PC/ABS casing . The sleek front keypad includes a light-backlit interface and in-use indicator for intuitive operation.
Access is controlled by 4–12 digit PINs, including an imaginary number function to thwart unauthorized observation, and supports both Public and Private modes with dual access levels (Master and User) . The unit features auto-lock and manual-lock options, and after five incorrect attempts, it locks out for 30 seconds while sounding a strong alarm on forced entries .
Power comes from three AA batteries (+4.5 V DC), providing up to 18 months battery life, with low-battery warning sounds including the signature “little star” melody. For emergency backup, a USB-C port allows external power to regain access .
Certified with CE and RoHS standards, the lock is durable and reliable—backed by a 10-year mechanical warranty to ensure long-term functional assurance . Available in high-gloss chrome-coated finishes or classic matte black, it pairs seamlessly with modern interiors and other EUROART CRES hardware.
Ideal for environments where shared or temporary access is required—like fitness centers, co-working spaces, hotels, or schools—the EUROART EALF23-HL Smart Digital Lock brings streamlined security, easy management, and sleek aesthetic to every locker.
